Sight Flow Indicators are used to indicate presence of condensate in steam processes or contamination in plant processes. They are commonly used to observe reactions or mixing processes. Sight Flow Indicators can also be placed in pressure vessels, large pipes, or tanks

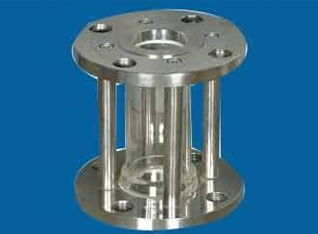

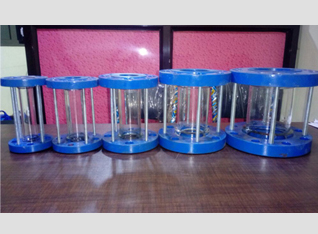

Perfect Ventures LLC offers , Flanged ends to tubular sight Flow Indicator, unsheathed type ,with smooth bore ID borosilicate glass tube. The smooth bore ID prevents product retention regardless of sight flow indicators orientation.
Suitable to mount either in vertical or horizontal pipelines.
Specification:
| Size | 25NB to 150NB |
| Max. Hydro Test Pressure | 5.0 kg/cm2 |
| Pressure Class | 150#class |
| MOC | CS/SS 304/SS316 |
| Dual Window type Indicators on Request. | |
